Docker

useful commands link

TLDR

what is a container

Docker is like Git for OSes

Dockerfile is like bash scripts for MacOS

Running one

here

detached and foreground mode

ref

Docker / Virtual Machines

docker and vm

processes grouped in their own namespace = container link

Docker is an app for your apps to run

container

Virtual Machines is OS simulation

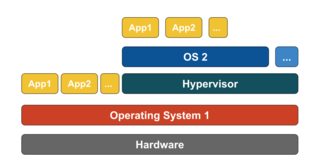

emulator

  1. Emulation
    • writing a program that simulates all the underlying physical hardware
    • e.g. Parallels, VMware Player, VirtualBox, QEMU
    • slow

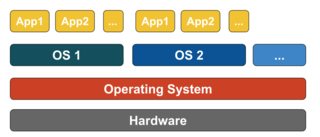

hypervisor

  1. Hypervisors (Virtual Machine Monitor)
    • run Guest OS directly on CPU
    • e.g. Xen, KVM
    • instruction sets (CPU code) for both OSes must be the same
    • as fast as original OS

The Lower Level

Note: I'm simplifying a bit in describing below. See references for more information.

How virtualization works at low level?

In this case VM manager takes over the CPU ring 0 (or the "root mode" in newer CPUs) and intercepts all privileged calls made by guest OS to create illusion that guest OS has its own hardware. Fun fact: Before 1998 it was thought to be impossible to achieve this in x86 architecture because there was no way to do this kind of interception. The folks at VMWare were the first who had an idea to rewrite the executable bytes in memory for privileged calls of guest OS to achieve this.

The net effect is that virtualization allows you to run two completely different OS on same hardware. Each guest OS goes through all the process of bootstrapping, loading kernel etc. You can have very tight security, for example, guest OS can't get full access to host OS or other guests and mess things up.

How containers works at low level?

Around 2006, people including some of the employees at Google implemented new kernel level feature called namespaces (however the idea long before existed in FreeBSD). One function of the OS is to allow sharing of global resources like network and disk to processes. What if these global resources were wrapped in namespaces so that they are visible only to those processes that run in the same namespace? Say, you can get a chunk of disk and put that in namespace X and then processes running in namespace Y can't see or access it. Similarly, processes in namespace X can't access anything in memory that is allocated to namespace Y. Of course, processes in X can't see or talk to processes in namespace Y. This provides kind of virtualization and isolation for global resources. This is how docker works: Each container runs in its own namespace but uses exactly the same kernel as all other containers. The isolation happens because kernel knows the namespace that was assigned to the process and during API calls it makes sure that process can only access resources in its own namespace.

The limitations of containers vs VM should be obvious now: You can't run completely different OS in containers like in VMs. However you can run different distros of Linux because they do share the same kernel. The isolation level is not as strong as in VM. In fact, there was a way for "guest" container to take over host in early implementations. Also you can see that when you load new container, the entire new copy of OS doesn't start like it does in VM. All containers share same kernel. This is why containers are light weight. Also unlike VM, you don't have to pre-allocate significant chunk of memory to containers because we are not running new copy of OS. This enables to run thousands of containers on one OS while sandboxing them which might not be possible to do if we were running separate copy of OS in its own VM.

Docker vs Virtual Machines (VM)

1. Snapshot process is faster in Docker than VMs

We generally start with a base image, and then make our changes, and commit those changes using docker, and it creates an image. This image contains only the differences from the base. When we want to run our image, we also need the base, and it layers our image on top of the base using a layered file system. File system merges the different layers together and we get what we want, and we just need to run it. Since docker typically builds on top of ready-made images from a registry, we rarely have to "snapshot" the whole OS ourself. This ability of Dockers to snapshot the OS into a common image also makes it easy to deploy on other docker hosts.

2. Startup time is less for Docker than VMs

A virtual machine usually takes minutes to start, but containers takes seconds, and sometime even less than a second.

3. Docker images have more portability

Docker images are composed of layers. When we pull or transfer an image, only the layers we haven’t yet in cache are retrieved. That means that if we use multiple images based on the same base Operating System, the base layer is created or retrieved only once. VM images doesn't have this flexibility.

4. Docker provides versioning of images

We can use the docker commit command. We can specify two flags: -m and -a. The -m flag allows us to specify a commit message, much like we would with a commit on a version control system:

$ sudo docker commit -m "Added json gem" -a "Kate Smith"
0b2616b0e5a8 ouruser/sinatra:v2
4f177bd27a9ff0f6dc2a830403925b5360bfe0b93d476f7fc3231110e7f71b1c

5. Docker images do not have states

In Docker terminology, a read-only Layer is called an image. An image never changes. Since Docker uses a Union File System, the processes think the whole file system is mounted read-write. But all the changes go to the top-most writeable layer, and underneath, the original file in the read-only image is unchanged. Since images don't change, images do not have state.

6. VMs are hardware-centric and docker containers are application-centric

Let's say we have a container image that is 1GB in size. If we wanted to use a Full VM, we would need to have 1GB times x number of VMs you want. In docker container we can share the bulk of the 1GB and if you have 1000 containers we still might only have a little over 1GB of space for the containers OS, assuming they are all running the same OS image.

7. Supported image formats

Docker images:

bare. The image does not have a container or metadata envelope.
ovf. The OVF container format.
aki. An Amazon kernel image.
ari. An Amazon ramdisk image.
ami. An Amazon machine image.

VM images:

raw. An unstructured disk image format; if you have a file without an extension it is possibly a raw format
vhd. The VHD disk format, a common disk format used by virtual machine monitors from VMware, Xen, Microsoft, VirtualBox, and others
vmdk. Common disk format supported by many common virtual machine monitors
vdi. Supported by VirtualBox virtual machine monitor and the QEMU emulator
iso. An archive format for the data contents of an optical disc, such as CD-ROM.
qcow2. Supported by the QEMU emulator that can expand dynamically and supports Copy on Write
aki. An Amazon kernel image.
ari. An Amazon ramdisk image.
ami. An Amazon machine image.

Docker vs a deploying to a consistent production environment

In relation to:-

"Why is deploying software to a docker image easier than simply deploying to a consistent production environment ?"

Most software is deployed to many environments, typically a minimum of three of the following:

Individual developer PC(s)
Shared developer environment
Individual tester PC(s)
Shared test environment
QA environment
UAT environment
Load / performance testing
Live staging
Production
Archive
There are also the following factors to consider:

This all means that creating consistent environments in the first place is hard enough just because of sheer volume (even in a green field scenario), but keeping them consistent is all but impossible given the high number of servers, addition of new servers (dynamically or manually), automatic updates from o/s vendors, anti-virus vendors, browser vendors and the like, manual software installs or configuration changes performed by developers or server technicians, etc. Let me repeat that - it's virtually (no pun intended) impossible to keep environments consistent (okay, for the purist, it can be done, but it involves a huge amount of time, effort and discipline, which is precisely why VMs and containers (e.g. Docker) were devised in the first place).

So think of your question more like this "Given the extreme difficulty of keeping all environments consistent, is it easier to deploying software to a docker image, even when taking the learning curve into account ?". I think you'll find the answer will invariably be "yes" - but there's only one way to find out, post this new question on Stack Overflow.

side note: (python) what's a WSGI?

its another set of commands (like dockerfile, Procfile) to tell your production-grade webserver what to do. Dockerfile tells docker what to do Procfile tells heroku what to do WSGI file tells webservers like Apache and Nginx what to do

stateless vs stateful docker containers link

stateless vs stateful chart

some tutorials to get started

refs
